Categoryelectronic-card

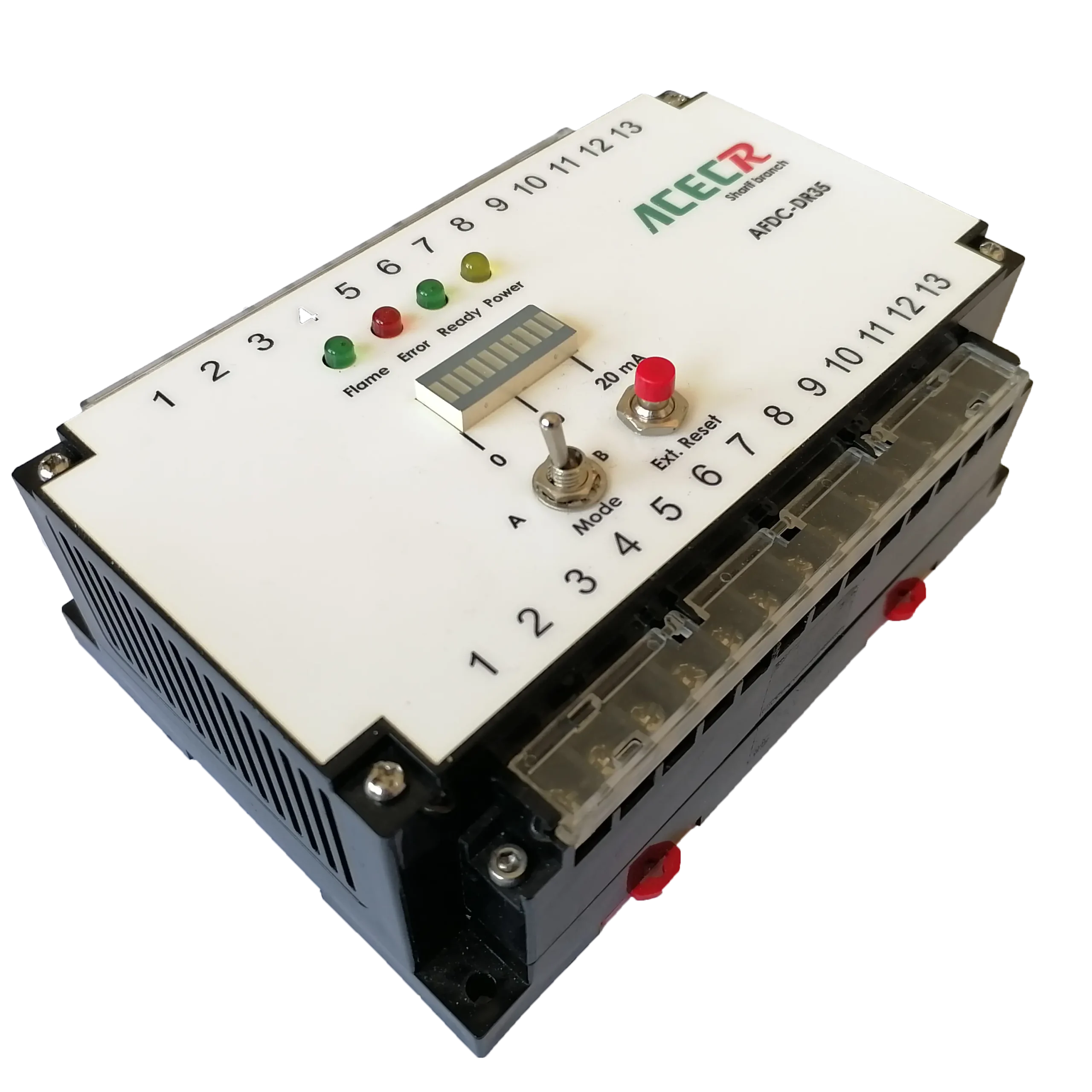

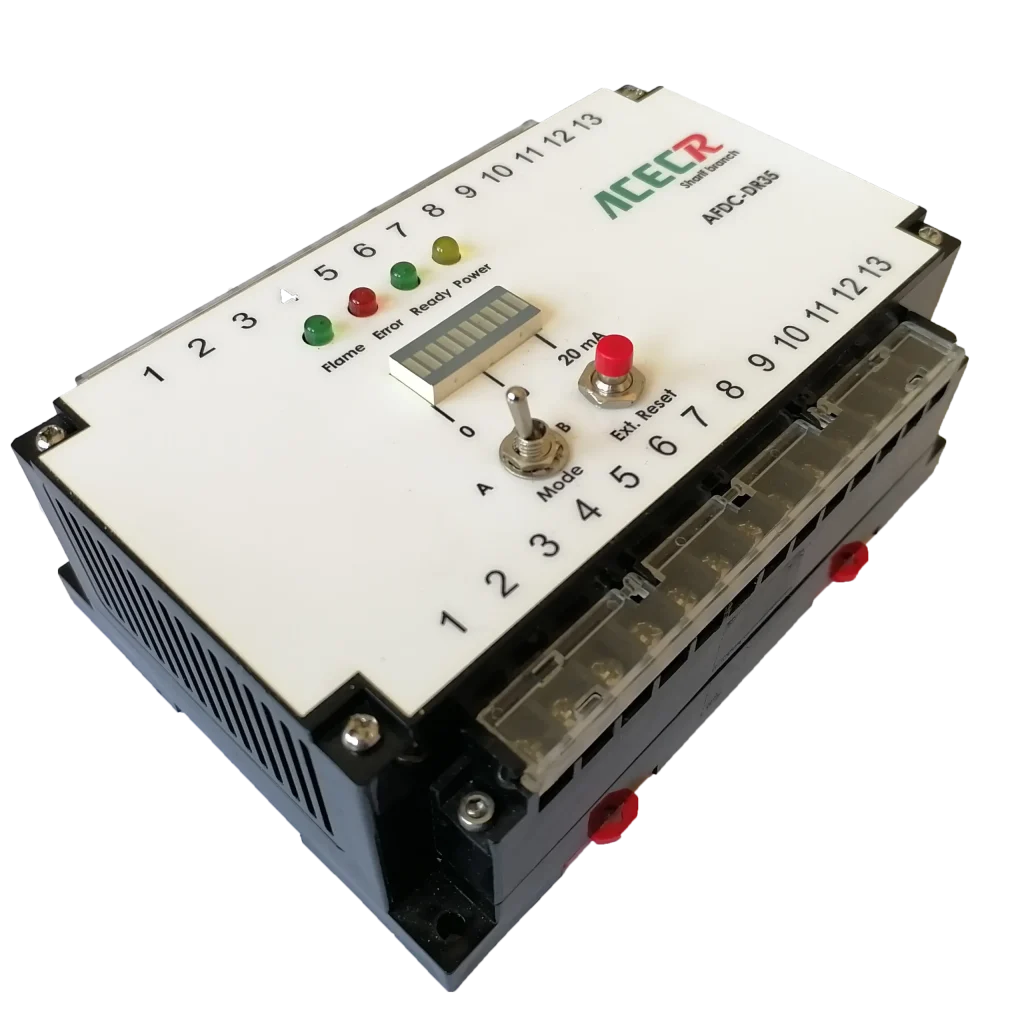

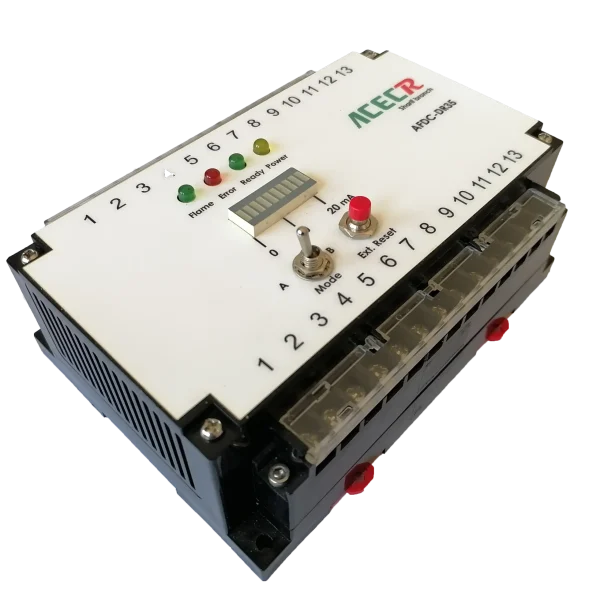

This card consists of an electronic board which is connected to flam detector through 12-strand fiber optic cable . It is located in control room in order to receive and observe the output signals.
Overview
This card consists of an electronic board which is connected to flam detector through 12-strand fiber optic cable . It is located in control room in order to receive and observe the output signals.
| DIN Rail 35 mm | Installation method | 24 VDC ±20% | Working voltage |
| RS485, Modbus RTU | Communication protocol | 5 W | Consumption power |
| 0/4 … 20 mA, max. load 750 ohm | Analog current output | 0°C to +70°C | Environmental temperature |

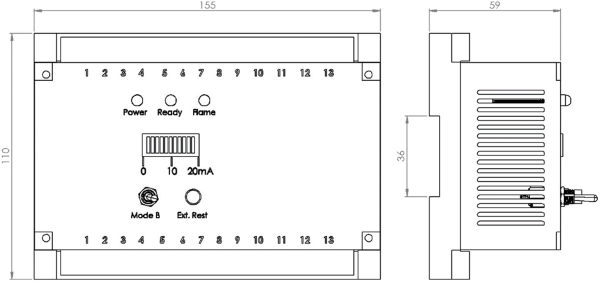

| 1x closing contact, 24 VDC, 0.5 A | Flame relay contact | 155x110x59 | Dimensions
mm(L x W x H) |
| 1x closing contact, 24 VDC, 0.5 A | System status relay contact | approx. 600 g | Weight |
